Lyson | Stainless Steel Pneumatic Bottling Valve

W4011


This simple and very accurate device will allow you to bottle honey very precisely without spillage.

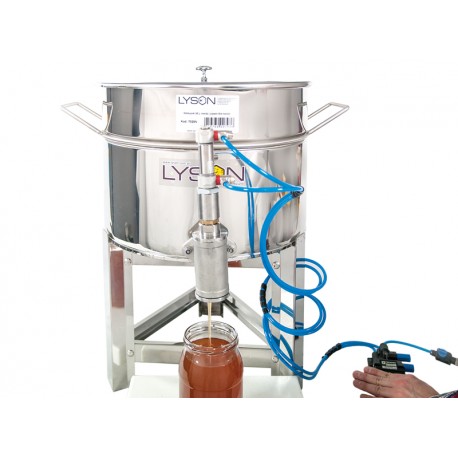

Keep your hands free with this air actuated bottling valve from LYSON. The valve is based on LYSON's manual bottling valves but this unit has a foot operated air piston to open/close the valve.

The valve bolts to a honey gate flange on your bottling tank. The valve flange has a flat mounting surface. The tank honey gate provides the O-ring to seal the joint

Product Specifications:

  • Valve height: 11-1/2"
  • Valve width: 3"
  • Valve depth: 3-1/2"
  • Flange bolt maximum diameter: 7/16"
  • Flange bolt spacing centerline to centerline: 2-1/2" to 2-13/16"
  • Flange flat surface diameter (mating O-ring dimension) 1-5/8" to 2-1/8"
  • Valve tapered plug small diameter: 3/4"
  • Foot pedal: 3" W x 5" L x 2-1/8" H
  • Tubing length between valve and foot pedal: 36"
  • Maximum allowed air pressure: 140 psig
  • Normal operating air pressure: 85 psig
  • Tubing air connection: 1/4" male npt
  • Air to open valve
  • Spring close with air assist
  • Requires compressed air source (not included)
  • Weight: 5 lb 5 oz
