Lyson | Complete Mini Extraction Line | OPTIMA

SPECIAL ORDER ITEM - Call 905-753-2623 or Email sales@dancingbeeequipment.com for more information.

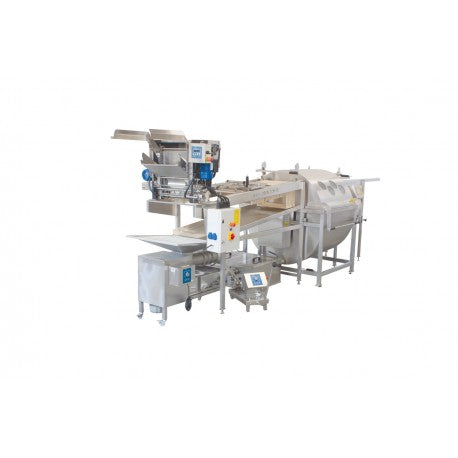

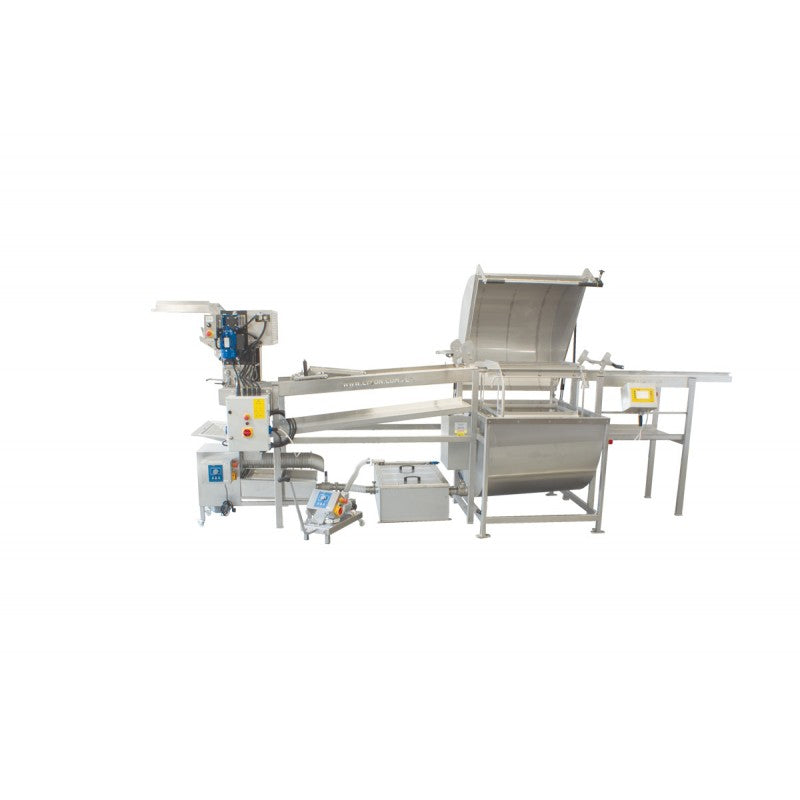

Automatic honey extracting line with uncapping device, cappings extruder, horizontal honey extractor for 40 frames, honey sump and honey pump. A fully programmable controller (8 programs included), allows complete control over the entire process while a variable frequency drive ensures ultimate precision, with speed variance increments as little as 1%. Load and unload frames quickly with a frame cart and discharge rack that will hold a total of 40 frames.

System dimensions:

Approximately 16 ft x 4.5 ft. Recommended building size (minimum): 11 ft x 22 ft plus additional space for honey tanks, pallet maneuvering, and storage.

Horizontal extractor:

• 40 frame (two sections)
• 4.3" full color LCD display to access settings and monitor progress
• Motor - 0.75 kW
• Maximum extractor speed: 280 RPM
• 7-10 minute typical extracting time
• Power supply - 230 V
• 2” ball valve

Built-in Uncapping machine:

• Power supply: 230 V, closed circuit heating system
• Frame loader length:  150 cm
• Frame receiver: single, 150 cm

Cappings extruder:

• Efficiency - 100 kg/h
• Motor - 0.55 kW
• Power supply - 230 V
• Adjustable auger speed - up to 9 rpm

Honey pump:

• Pumps honey into barrels or bulk storage
• Motor - 0.37 kW
• Power supply - 230 V

Honey sump:

• insulated
• Baffles separate the floating wax from the honey.
• Float valve controls honey pump
• 80 cm


Extractor frame loader:

• 150 cm

Extracted frame hanger:

• 150 cm

2 Year Warranty
